LONGWELL currently has five categories of sand pump products: SB6 × 8, SB5 × 6, SB4 × 5, SB3 × 4, and SB2 × 3, with over 80 specifications ranging from 4kW to 75kW depending on the matching power. There are two structural forms: direct connection and belt transmission, which can meet the needs of 50 and 60HZ power grids. There are two standards, metric and imperial. There are two directions of rotation: forward and reverse.

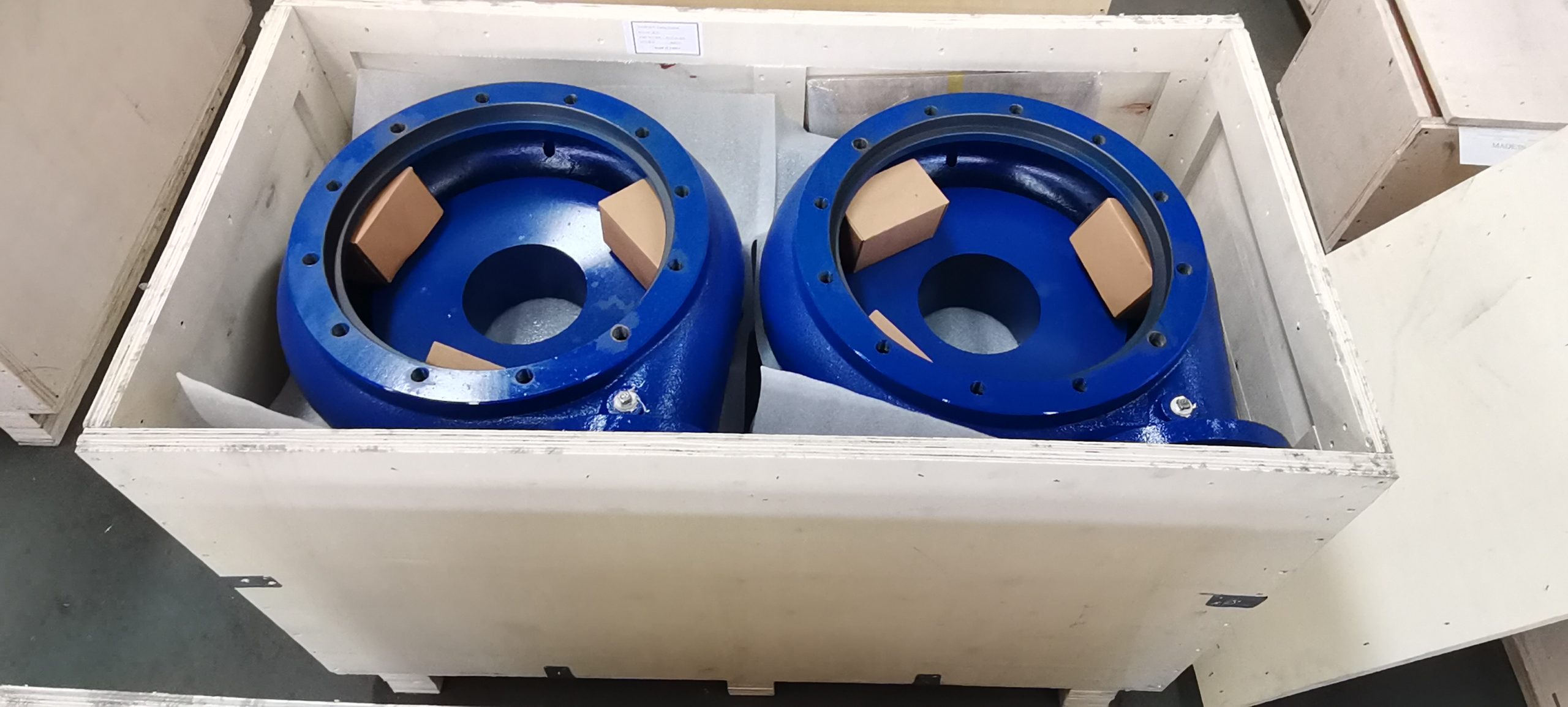

Sand pump spare parts
Equipment characteristics
100% replacement of XBSY and Misson. No leakage: The service life is 6 times that of ordinary mechanical seals. High efficiency: The impeller and pump casing flow channels adopt the best streamlined design. Long service life: The overcurrent components are made of high wear-resistant cast iron. No blockage: The impeller adopts a wide channel design. Beautiful appearance: The overall structure is compact and reasonable.
| NO. | Description | Model |
| 1 | Pump casing J – 13″ for pump SB6x8J | p/n SB68J0002 in F version |
| 2 | Impeller J – 13″ for pump SB6x8J | p/n SB68J0003 in version F |
| 3 | Shaft for pump SB6x8J | p/n SB68J0017 in F version |
| 4 | Pump cover and mechanical seal for pump SB6x8J | p/n SB68J0011 |
| 5 | Mechanical seal assembly for pump SB6x8J | P/N SB68J0044 |
| 6 | Bushing for pump SB6x8J | P/N SB68J0036 |
| 7 | O-ring for pump SB6x8J | p/n SB68J0037 |
| 8 | Pressure unit (granobox) for pump SB6x8J | SB68J0035 |
| 9 | 7314 ACM bearing for SB6x8J pump | P/N SB68J0015 |
| 10 | 6314 C3 bearing for SB6x8J pump | p/n SB68J0024 |
| 11 | Oil seal for SB6x8J pump | p/n SB68J0023 |
| 12 | Lock nut for pump SB6x8J | p/n SB68J0004 |
| 13 | Nut for pump SB6x8J | p/n SB68J0005 |
| 14 | Washer for pump SB6x8J | p/n SB68J0006 |
| 15 | Counter washer for pump SB6x8J | SB68J0032 |
| 16 | Nut for pump SB6x8J | p/n SB68J0031 |
| 17 | Pump coupling for pump SB6x8J | P/N SB68J0003S |
| 18 | Motor coupling for pump SB6x8J | p/n SB68J0004S |
| 19 | Coupling pins for pump SB6x8J | p/n SB68J0015S |
| 20 | Pump casing J – 14″ for pump SB5x6J | p/n SB56J0001 |
| 21 | Impeller J – 14″ for pump SB5x6J | p/n SB56J0002 |
| 22 | Pump cover and mechanical seal for SB5x6J pump | P/N SB56J0007 |
| 23 | Shaft for pump SB5x6J | P/N SB56J0024 |
| 24 | Bearing for pump SB5x6J | p/n SB56J0012 |
| 25 | Bearing for pump SB5x6J | p/n SB56J0017 |
| 26 | Mechanical seal assembly for pump SB5x6J | p/n SB56J0044 |
| 27 | Bushing for pump SB5x6J | P/N SB56J0043 |
| 28 | O-ring for pump SB5x6J | P/N SB56J0040 |
| 29 | Pressure unit (granobox) for pump SB5x6J | P/N SB56J0039 |
| 30 | Pump casing for pump SB6x8FJ shield | p/n SB68FJ0002S |
| 31 | Impeller for pump SB6x8FJ pump connection | p/n SB68FJ0003S |
| 32 | Lock nut for pump SB6x8FJ Union | p/n SB68FJ0004S |
| 33 | Nut for pump SB6x8FJ | p/n SB68FJ0005S |
| 34 | Shaft for pump SB6x8FJ | p/n SB68FJ0017 |
| 35 | Nut for pump SB6x8FJ | p/n SB68FJ0031 |
| 36 | Mechanical seal assembly for pump SB6x8FJ | p/n SB68FJ0044 |
| 37 | Shaft for pump XBSY 32SB180J | p/n 32SB180J0033 |
| 38 | Bearing for XBSY pump 32SB180J | p/n 32SB180J0032 |
| 39 | Bearing for pump XBSY 32SB180J | p/n 32SB180J0035 |
| 40 | Shaft sleeve for pump XBSY 32SB180J | P/N 32SB180J0008 |
| 41 | Mechanical seal assembly for XBSY 32SB180J pump | 32SB180J0009 |
| 42 | Impeller (vane) for pump XBSY 32SB180J | P/N 32SB180J0005 |
| 43 | Mechanical seal pump cover for XBSY 2SB180J pump | P/N 32SB180J0010 |
| 44 | Pump casing (seal) for XBSY 32SB180J pump | P/N 32SB180J0002 |
| 45 | Motor coupling for XBSY 32SB180J pump | 32SB180J0013S |
| 46 | Rubber coupling connection to pump XBSY 32SB180J | P/N 32SB180J0014S |
| 47 | Pump coupling to pump XBSY 32SB180J | P/N 32SB180J0015S |
